JINBEI HAISE EV
- Length
- 5350mm
- Width
- 1690mm
- Height
- 2260/2225mm
- Wheelbase
- 2920mm

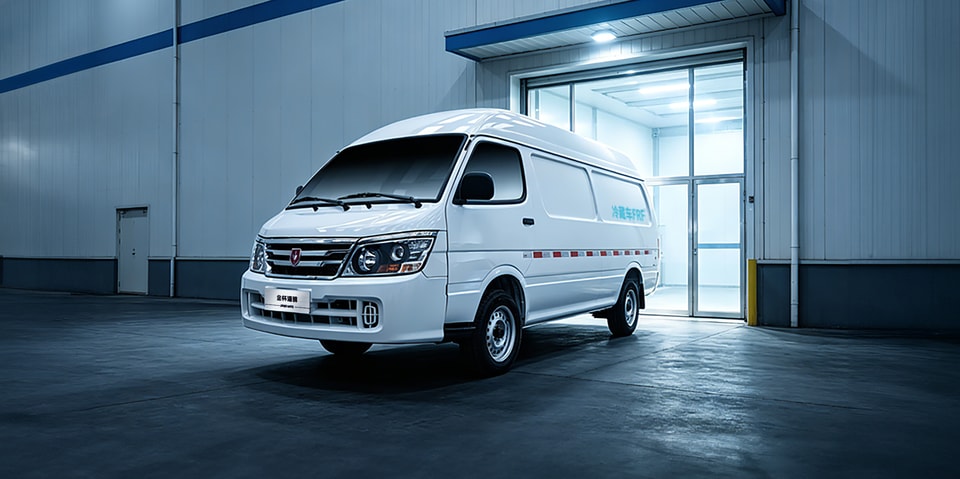

Haise LWB Refrigerated Van
Model overview

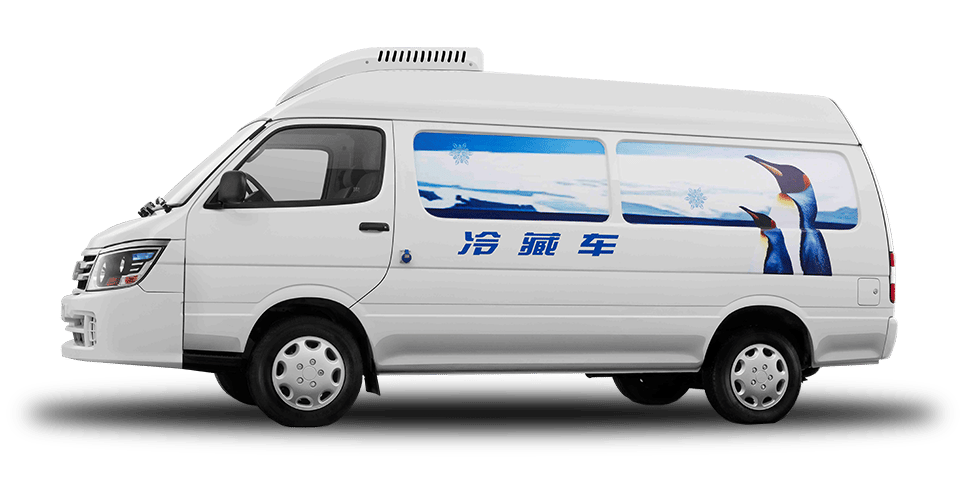

Haise LWB Refrigerated Van
Refrigerated van.
Engine power100 kW
Maximum torque185 N·m
Wheelbase2920 mm
Model Type approval modelSY5033XLCL-H4SBH
Dimensions & Weights Overall dimensions (mm)5350 × 1690 × 2245
Wheelbase (mm)2920
Exterior & Interior
Overview & Highlights
Designed for your journey.
Haise LWB Refrigerated Van
A closer look at Haise LWB.
Design & details
Cargo & Logistics
Vehicle conversions for refrigerated transport and mobile service.
Design & details
Medical & Emergency
Vehicle conversions for emergency medical transport.
Design & details
Law Enforcement
Vehicle conversions for patrol and public-service operations.
Design & details
RVs & Recreation
Vehicle conversions for travel and recreational use.
Specifications
| Model | |
|---|---|
| Type approval model | SY5033XLCL-H4SBH |
| Dimensions & Weights | |
| Overall dimensions (mm) | 5350 × 1690 × 2245 |
| Wheelbase (mm) | 2920 |
| Compartment dimensions (mm) | 2835 × 1380 × 1400 |
| Curb weight (kg) | 1800 |
| Gross vehicle weight (kg) | 2510 |
| Payload (kg) | 580 |
| Engine & Transmission | |
| Engine model | 1TZS |
| Fuel | Gasoline |
| Aspiration | Naturally aspirated |
| Displacement | 2.0 L |
| Emission standard | China VI (CN6) |
| Rated power (kW) | 100 |
| Max torque (N·m) | 185 |
| Transmission | 5MT |
| Top speed | 130 km/h |
| Chassis & Standard Equipment | |
|---|---|
| Suspension | Front double-wishbone + rear 5-leaf spring |
| Safety systems | Anti-lock braking system (ABS) Electronic brake-force distribution (EBD) |
| Cab seating | 2 seats with seat belts |
| Other equipment | Cab power windows and central locking |
| Refrigeration Equipment · Insulated Body | |
| Stainless steel body | 304 stainless steel · 1 set |
| FRP body (optional) | 2.5 mm fibreglass · 1 set |
| Insulation | Polyurethane insulation panels · 1 set |
| Edge trim | Aluminium alloy · 1 set |
| Floor | Aluminium checker plate · 1 set |
| Rear doors | Twin rear doors (single-opening tailgate) · 1 set |
| Side door | Outward-swing side door · 1 set |
| Refrigeration Equipment · Cooling, Power & Recording | |
| Temperature display | Cab temperature display and control · 1 set |
| Refrigeration unit | DENSO (Japan) standard; other brands optional · 1 set |
| Inverter | 3000 W inverter · 1 set |
| External power | 220 V external power inlet · 1 set |
| Temperature recorder | GPS temperature recorder · 1 set |
| Driving recorder | BeiDou driving data recorder (route tracking) · 1 set |
| Refrigeration Equipment · Pharmaceutical Transport | |
| Floor and side walls | Goods kept at least 10 cm from the front wall and 5 cm from the floor, side and rear walls; isolation guard rails inside the body · 1 set |
