JINBEI HAISE EV
- Length
- 5350mm
- Width
- 1690mm
- Height
- 2260/2225mm
- Wheelbase
- 2920mm

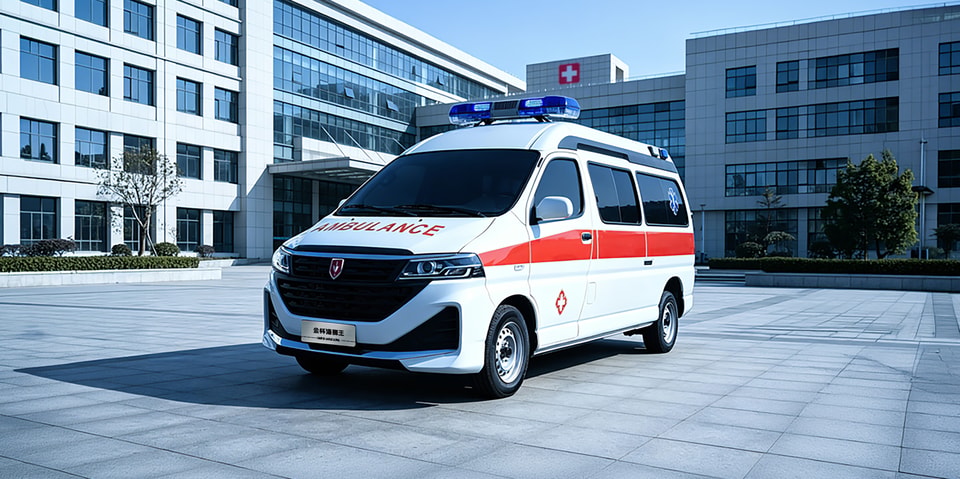

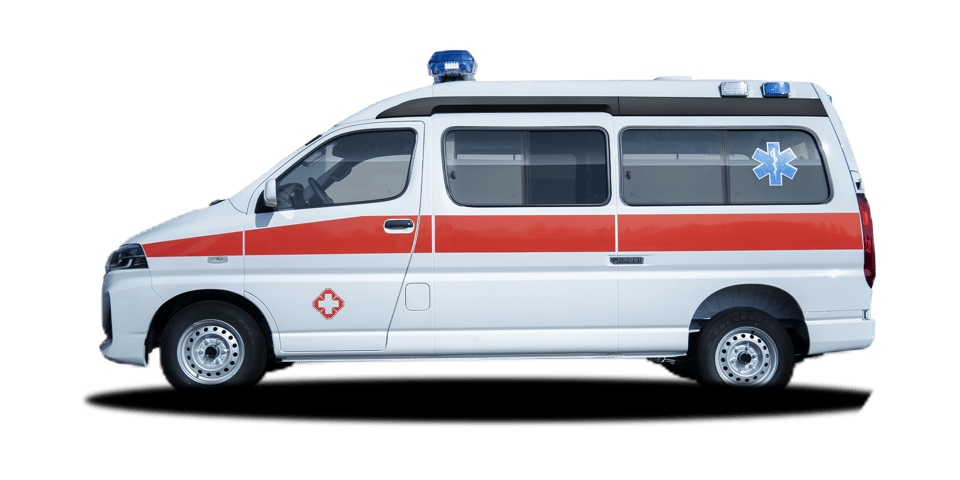

Haise King Ambulance
Model overview
Haise King Ambulance
Emergency ambulance.
Length × Width × Height (mm)5255 × 1825 × 2390/2180
Engine power100 / 5000 kW
Maximum torque185 / 2800–4000 N·m
Wheelbase3430 mm
Exterior & Interior
Overview & Highlights
Designed for your journey.
Haise King Ambulance
A closer look at Haise King Ambulance.
Design & details
Cargo & Logistics
Vehicle conversions for refrigerated transport and mobile service.
Design & details
Medical & Emergency
Vehicle conversions for emergency medical transport.
Design & details
Law Enforcement
Vehicle conversions for patrol and public-service operations.
Design & details
RVs & Recreation
Vehicle conversions for travel and recreational use.
Specifications
| Model | |
|---|---|
| Type approval model | SY5035XJHL-H4S1BG |
| Dimensions & Weights | |
| Wheelbase (mm) | 3430 |
| Overall dimensions (mm) | 5255 × 1825 × 2390/2180 |
| Medical cabin (mm) | 2700 × 1660 × 1620/1420 |
| Curb weight (kg) | 1900 |
| Gross vehicle weight (kg) | 2750 |
| Engine & Transmission | |
| Engine model | 1TZS |
| Fuel | Gasoline |
| Aspiration | Naturally aspirated |
| Displacement (cc) | 1998 |
| Emission standard | China VI (CN6) |
| Rated power (kW/rpm) | 100 / 5000 |
| Max torque (N·m/rpm) | 185 / 2800–4000 |
| Transmission | 5-speed manual (5 forward, 1 reverse) |
| Top speed | 150 km/h |
| Chassis & Standard Equipment | |
| Suspension | Front double-wishbone independent + rear 5-leaf spring Optional: front double-wishbone + rear coil-spring independent |
| Safety systems | Anti-lock braking system (ABS) Electronic brake-force distribution (EBD) |
| Cab seating | 2 seats with seat belts |
| Other equipment | Cab power windows and central locking |
| Infotainment | Radio (optional reversing camera and 14.6-inch display) |
| Medical Equipment · Warning & Disinfection | |
| LED light bar | 100 W siren with LED strobes and speaker · 1 set |
| Cylindrical strobes | Strobe warning lights on both rear sides · 2 |
| UV disinfection lamp | 1 set |
| Cabin lighting | LED ceiling lights · 2 |
| Medical Equipment · Cabin | |
|---|---|
| Interior | Factory interior, eco-friendly materials · 1 set |
| Partition | Polymer partition wall, lightweight eco-friendly material · 1 set |
| Intercom | Front–rear intercom · 1 set |
| Stretcher | Aluminium auto-loading stretcher, load capacity 159 kg · 1 |
| Stretcher platform | Guard plate and stainless steel platform · 1 |
| Equipment cabinet | Multi-function cabinet, lightweight eco-friendly material · 1 set |
| Left-side cabinet | Long cabinet, lightweight eco-friendly material · 1 set |
| Floor | One-piece medical floor: anti-slip, acid/alkali and corrosion resistant, washable · 1 set |
| Medical Equipment · Oxygen & Power | |
| Oxygen cylinders | Aluminium, 10 L · 2 |
| Oxygen control | Central control with pressure reducer and humidifier bottle · 1 set |
| Inverter | 600 W smart inverter · 1 |
| Electrical control | Smart central control switch · 1 set |
| AC socket | 220 V stable output · 1 |
| DC socket | 12 V stable output · 1 |
| Leakage protection | Line protection with overload protection · 1 set |
| Medical Equipment · Seating & Accessories | |
| Attendant seat | Rear-facing seat at the head of the stretcher, with seat belt · 1 |
| Forward-facing seat | At the front of the cabinet bed, with seat belt · 1 |
| Bench seat | On the cabinet bed, left of the side door, with seat belts · 1 |
| Fire extinguisher | 1 kg vehicle extinguisher · 1 |
| Waste bin | Round stainless steel bin with lid · 1 |
| IV holder | Rail-mounted infusion hanger · 1 set |
| Ambulance markings | Cross and Star of Life emblems, 3M reflective film for night visibility · 1 set |
| Cabin window film | Milky white, lower 2/3 of cabin windows; shatter-resistant, privacy · 1 set |
Browse by series
Related models
More from the range
Next stepNeed a configuration
Need a configuration
for your market?
LHD / RHD, emission version and seating layout can be adapted. Tell us the market and quantity and we will come back with a configuration and a quotation.
