JINBEI HAISE EV
- Length
- 5350mm
- Width
- 1690mm
- Height
- 2260/2225mm
- Wheelbase
- 2920mm
Haise King RV Camper
Model overview

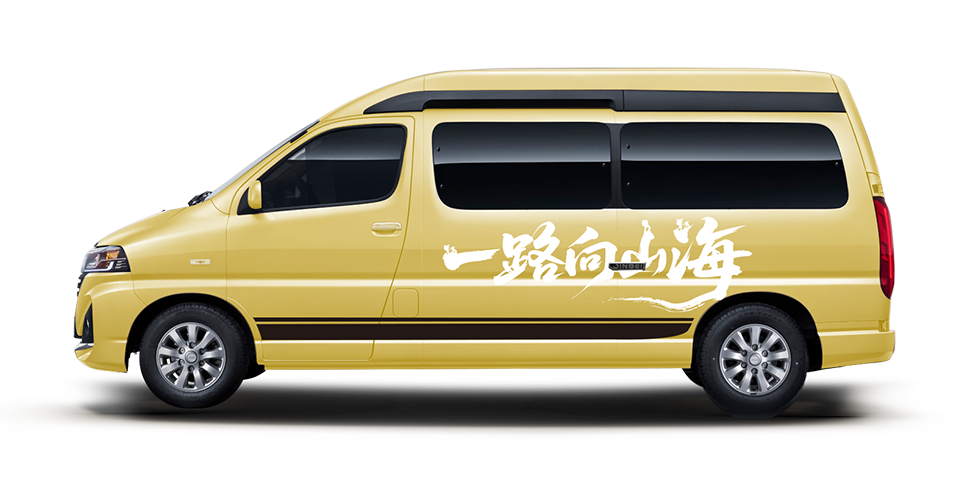

Haise King RV Camper
Self-contained RV camper.
Length × Width × Height (mm)5255 × 1825 × 2030
Engine power100 / 5000 kW
Maximum torque185 / 2800–4000 N·m
Wheelbase3430 mm
Exterior & Interior
Overview & Highlights
Designed for your journey.

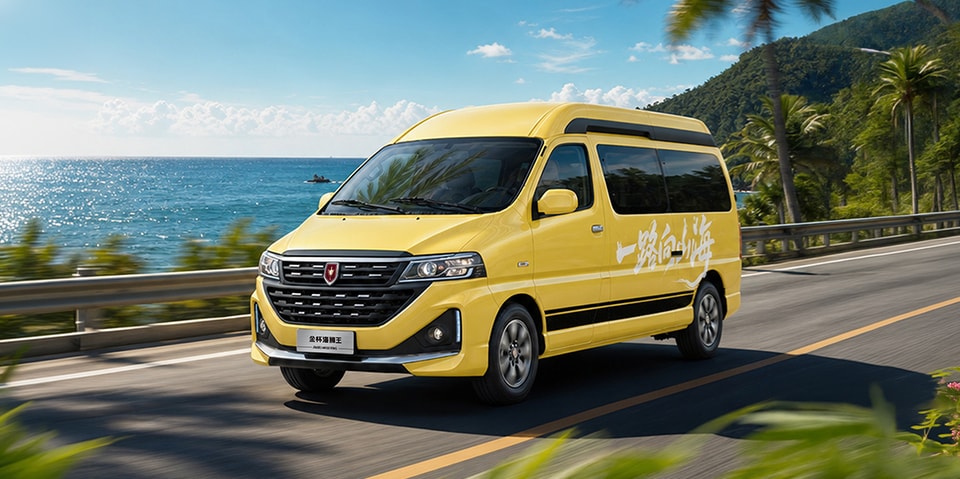

Haise King RV Camper
A closer look at Haise King RV.
Design & details
Cargo & Logistics
Vehicle conversions for refrigerated transport and mobile service.
Design & details
Medical & Emergency
Vehicle conversions for emergency medical transport.
Design & details
Law Enforcement
Vehicle conversions for patrol and public-service operations.
Design & details
RVs & Recreation
Vehicle conversions for travel and recreational use.
Specifications
| Model | |
|---|---|
| Type approval model | SY5035TSYL-H4S1BG |
| Dimensions & Weights | |
| Wheelbase (mm) | 3430 |
| Overall dimensions (mm) | 5255 × 1825 × 2030 |
| Curb weight (kg) | 1840 |
| Gross vehicle weight (kg) | 2650 |
| Engine & Transmission | |
| Engine model | 1TZS |
| Fuel | Gasoline |
| Aspiration | Naturally aspirated |
| Displacement (cc) | 1998 |
| Emission standard | China VI (CN6) |
| Rated power (kW/rpm) | 100 / 5000 |
| Max torque (N·m/rpm) | 185 / 2800–4000 |
| Transmission | 5-speed manual (5 forward, 1 reverse) |
| Top speed | 150 km/h |
| Chassis & Standard Equipment | |
| Suspension | Front double-wishbone independent + rear 5-leaf spring Optional: front double-wishbone + rear coil-spring independent |
| Safety systems | Anti-lock braking system (ABS) Electronic brake-force distribution (EBD) |
| Cab seating | 2 seats with seat belts |
| Other equipment | Cab power windows and central locking |
| Infotainment | Radio (optional reversing camera and 14.6-inch display) |
| Camper Equipment · Exterior | |
| Side-door step | ● |
| Side-door courtesy light | ● |
| Camper Equipment · Climate & Ventilation | |
| Sliding side-door window with security mesh | ● |
| Sliding left-side window with security mesh | ● |
| Diesel air heater (high-altitude kit) | ● |
| Diesel tank for the heater (filler at the urea filler position) | ● |
| Insect screen and privacy door on side and rear doors | ● |
| Camper Equipment · Electrical System | |
|---|---|
| Central control switch panel | ● |
| Vehicle circuit protection system | ● |
| 3000 W inverter/charger (pure sine wave) | ● |
| 450 W solar panel with aluminium edge trim | ● |
| Solar charge controller / regulator | ● |
| 400 Ah LiFePO4 battery | ● |
| Mains power sockets (5) | ● |
| Spotlights (2) | ● |
| Tailgate light | ● |
| Bedside reading lights | ● |
| Camper Equipment · Body Construction | |
| Three-layer anti-vibration, thermal and acoustic insulation | ● |
| Camper Equipment · Seating & Sleeping | |
| 2-seat bench with backrest (conversion base + slide rails) | ● |
| Rear longitudinal bed 1.7 × 1.2 m + 0.8 m double backrest, forming a 1.7 × 2.0 m bed | ● |
| Facing dinette converts to a 1.85 × 0.85 m single bed | ● |
| Rear longitudinal bed 1.7 × 1.1 m + 0.35 m extension, forming a 1.7 × 1.45 m bed | ● |
| Storage net on right rear door | ● |
| Privacy curtains on living-area windows | ● |
| Privacy curtain between cab and living area | ● |
| Side-door privacy curtain | ● |
| Eco-friendly RV flooring | ● |
| RV-grade hardware | ● |
| RV-grade panels | ● |
| Left-side bar cabinet with induction cooker and folding table | ● |
| Fridge cabinet with vanity mirror | ● |
| Multi-function bed-box cabinet | ● |
| Camper Equipment · Kitchen & Other | |
| RV fridge | CLD35L (dual compartment, single control) |
| Surveillance | 4-channel camera system (voice control) |
Browse by series
Related models
More from the range
Next stepNeed a configuration
Need a configuration
for your market?
LHD / RHD, emission version and seating layout can be adapted. Tell us the market and quantity and we will come back with a configuration and a quotation.
