JINBEI HAISE EV
- Length
- 5350mm
- Width
- 1690mm
- Height
- 2260/2225mm
- Wheelbase
- 2920mm
Grand Haise Business Van 9-Seat
Model overview

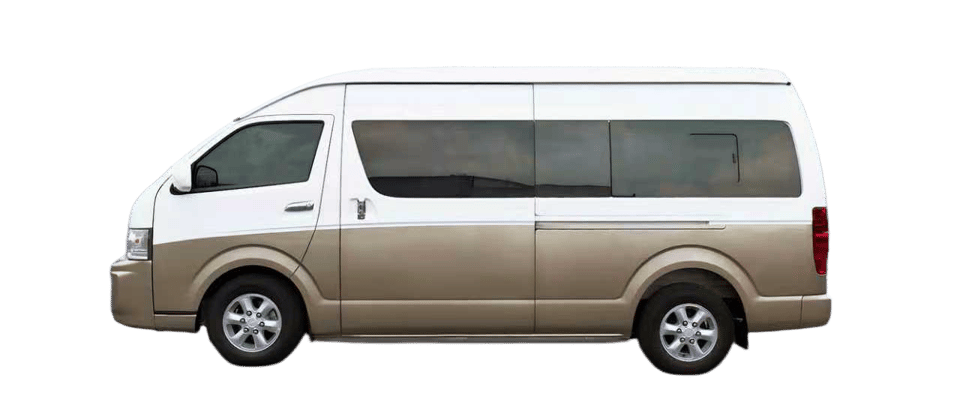

Grand Haise Business Van 9-Seat
Executive business conversion. Grand Haise Business Van — 9 seats (2+2+2+3), 2TZH 2.4 L engine (117 kW), 5MT, mid-engine rear-wheel drive. Features: four captain seats in beige microfibre leather, work table, blue LED ambient lighting, 2000 W inverter, front and rear A/C.
Length × Width × Height (mm)5420 × 1880 × 2285
Seating capacity9 (2+2+2+3)
Engine power117 / 5000 kW
Engine model2TZH / 2.4 L
Maximum torque235 / 2600–3600 N·m
Wheelbase3110 mm
Exterior & Interior
Overview & Highlights
Designed for your journey.
Grand Haise Business Van 9-Seat
A closer look at Grand Haise.
Design & details
Cargo & Logistics
Vehicle conversions for refrigerated transport and mobile service.
Design & details
Medical & Emergency
Vehicle conversions for emergency medical transport.
Design & details
Law Enforcement
Vehicle conversions for patrol and public-service operations.
Design & details
RVs & Recreation
Vehicle conversions for travel and recreational use.
Specifications
| Base Vehicle | |
|---|---|
| Model | Grand Haise business van, 9 seats |
| Overall dimensions (mm) | 5420 × 1880 × 2285 |
| Wheelbase (mm) | 3110 |
| Seats | 9 (2+2+2+3) |
| Engine | 2TZH / 2.4 L |
| Rated power (kW/rpm) | 117 / 5000 |
| Max torque (N·m/rpm) | 235 / 2600–3600 |
| Transmission | 5MT |
| Drive | Mid-engine, rear-wheel drive |
| Seat belts | 3-point (with seat-belt reminder) |
| ABS + EBD | ● |
| Reversing radar | ● |
| Air conditioning | Front and rear A/C |
| Conversion Equipment | |
|---|---|
| Woven-texture floor | 3500 × 1700 mm, textured film |
| Entry step | Aluminium alloy, illuminated |
| Inverter | 2000 W |
| Captain seat, row 1 left | 630 W × 680 D × 1100 H mm, beige microfibre leather (N106), non-swivel |
| Captain seat, row 1 right | 630 W × 680 D × 1100 H mm, beige microfibre leather (N106), non-swivel |
| Captain seat, row 2 left | 630 W × 680 D × 1100 H mm, beige microfibre leather (N106), non-swivel |
| Captain seat, row 2 right | 630 W × 680 D × 1100 H mm, beige microfibre leather (N106), non-swivel |
| 3-seat bench | 1440 W × 680 D × 1200 H mm, beige microfibre leather (N106) |
| Driver seat cover | Beige microfibre leather (N106) |
| Front passenger seat cover | Beige microfibre leather (N106) |
| Work table | Beige microfibre leather (N106) |
| Ceiling light | 12 V, 1500 × 450 mm |
| Left side ambient light strip | Blue LED, white light-guide acrylic; strip 2870 mm, acrylic 1500 × 30 mm; qty 2 |
| Right side ambient light strip | Blue LED, white light-guide acrylic; strip 2870 mm, acrylic 1500 × 30 mm; qty 1 |
| White acrylic trim | 1500 × 52 mm |
| Reading lights | 12 V |
| Front 360° floor mats + rear carpet | ● |
Browse by series
Related models
More from the range
Next stepNeed a configuration
Need a configuration
for your market?
LHD / RHD, emission version and seating layout can be adapted. Tell us the market and quantity and we will come back with a configuration and a quotation.
